Smart Multi-Channel Power Meter, Power Quality Meter
Motor Diagnosis Protection System

gems3500


Product Information
gems3500 제품정보
  • 하나의 Device로 여러 개의 전력 모니터링이 가능한 멀티 채널 미터
  • 측정요소 : 상/선간전압, 주파수, 선전류, 유효/무효/피상전력, 전압/전류 불평형률, 역률, 유효/무효/피상전력량
  • 최대 54개의 단상부하 및 26개(3상 3선식) 또는 18개 (3상4선식)
  • 삼상부하 전력 모니터링 가능
  • IEC62053-21/22에 따르는 0.5/1.0 Class 전력 정밀도 실현
  • 하나의 모델로 3상4선식/3상3선식에 적용
  • 최대 18대의 단독형 파워미터 대체가능하여 전력측정 비용절감
  • Sag/Swell 기능 (최소 0.5 cycle)
  • 고조파무효전력 함유율 표시. (THD)
  • 온도 (NTC) 1 point 지원
  • RS485 Serial 통신 및 이더넷 통신지원
  • 외부 DI/DO/AI 모듈 확장성
  • 클라우드 연동 에너지 플랫폼 지원
gems3500 Smart Multi-Channel Meter
  • Multi-channel power meter(gems3500) is able to measure and monitor multi electric power loads.
  • Max 54 single phase or 26 3P3W or 18 3P4W feeders power monitoring
  • Measurement : V (L-N, L-L) , A, Hz, PF, Unbalance, Power(P,Q,S), Energy (P,Q,S), etc.
  • 0.5 / 1.0 Class accuracy according to IEC62053-21 / 22
  • Flexible application for 3phase4wire/ 3phase3wire power line. Sag / Swell / Over Current / Temp Alarm.
  • Total Harmonics Distortion (THD)
  • 1 analog input terminal for temperature measurement (NTC)
  • Support RS232 / RS485 Serial (Modbus RTU) and Ethernet (Modbus TCP) Comm
  • Support Cloud energy platform

gems3512


Product Information
 gems3512 제품정보
  • 하나의 Device로 여러 개의 전력 모니터링이 가능한 멀티 채널 미터
  • 최대 12개의 단상부하 및 4개의 삼상부하(3상 4선식) 전력 모니터링 가능
  • 측정 요소 : 상/선간전압, 선전류, 유효/무효/피상전력, 전압/전류 불평형률, 역률, 유효/무효/피상전력량
  • IEC62053-21/22에 따르는 1.0/0.5 Class 전력 정밀도 실현
  • 하나의 모델로 결선방식에 따라 1P2W/ 1P3W / 3P4W / 3P3W에 적용
  • 고조파 전력함유율 표시(THD)
  • RS-485(옵션) 지원
  • 이더넷 통신 및 Wi-Fi(옵션)지원
  • 클라우드 연동 에너지 플랫폼 지원
  • 협소한 공간에서도 설치가 가능한 콤팩트한 사이즈 (62 x 96 x 56 mm) 상부 탈착 커버를 이용한 이물 방지 기능과 간결한 디자인 ※ 계측전압(A-N) 최대 240V
gems3512 Smart Multi-Channel Meter
  • Multi-channel meter(gems3512) is able to measure and monitor with multi electric power loads.
  • Up to 12 single phase or 4 3P4W feeders power monitoring
  • Measurement : V (L-N, L-L) , A, Hz, PF, Unbalance, Power(P,Q,S), Energy (P,Q,S), etc.
  • 0.5 / 1.0 Class accuracy according to IEC62053-21 / 22
  • Flexible application for the 3phase4wire/ 3phase3wire power line
  • Sag / Swell function (minimum 0.5 cycle)
  • Total Harmonics Distortion (THD)
  • Support Ethernet communication and optional Wi-Fi.
  • Support Cloud energy platform
  • Compact size to easy install in narrow space (62 x 96 x 56 mm) Strong structure against dust using the removable top cover

gems3520


Product Information
gems3520 제품정보
  • 하나의 Device로 여러 개의 전력 모니터링이 가능한 멀티 채널 미터
  • 최대 12개의 단상부하 및 4개의 삼상부하(3상 4선식) 전력 모니터링 가능
  • 측정 요소 : 상/선간전압, 선전류, 유효/무효/피상전력, 전압/전류 불평형률, 역률, 유효/무효/피상전력량
  • IEC62053-21/22에 따르는 1.0/0.5 Class 전력 정밀도 실현
  • 하나의 모델로 결선방식에 따라 1P2W/ 1P3W / 3P4W / 3P3W에 적용
  • 고조파 전력함유율 표시(THD)
  • 이더넷 통신, RS485 및 Wi-Fi 지원 (외장 안테나 사용)
  • 클라우드 연동 에너지 플랫폼 지원
  • 좁은 공간에 설치가 가능한 콤팩트한 사이즈 (67 x 106 x 65.5 mm)
  • 상부 탈착 커버를 이용한 이물 방지 기능과 간결한 디자인
gems3520 Smart Multi-Channel Meter
  • Multi-channel meter(gems3512) is able to measure and monitor with multi electric power loads.
  • Up to 12 single phase or 4 3P4W feeders power monitoring
  • Measurement : V (L-N, L-L) , A, Hz, PF, Unbalance, Power(P,Q,S), Energy (P,Q,S), etc.
  • 0.5 / 1.0 Class accuracy according to IEC62053-21 / 22
  • Flexible application for the 3phase4wire/ 3phase3wire power line
  • Sag / Swell function (minimum 0.5 cycle)
  • Total Harmonics Distortion (THD)
  • Support Ethernet communication and optional Wi-Fi.
  • Support Cloud energy platform
  • Compact size to easy install in narrow space (67 x 106 x 65.5 mm)
  • Strong structure against dust using the removable top cover

gems3900


Product Information
gems3900 제품정보
  • 하나의 Device로 여러 개의 전력 모니터링이 가능한 멀티 채널 미터 측정요소 : 상/선간전압, 주파수, 선전류, 유효/ 무효/피상전력, 전압/전류 불평형률, 역률, 유효/무효/피상전력량
  • 최대 99개의 단상부하 및 49개(3상 3선식) 또는 33개(3상4선식) 삼상부하 전력모니터링 가능
  • IEC62053-21/22에 따르는 0.5/1.0 Class 전력 정밀도 실현
  • 모델에 따라 3상4선식/3상3선식에 적용
  • 최대 99대의 단독형 파워미터 대체가능하여 전력 측정설비 비용절감
  • Sag/Swell 기능 (최소 0.5 cycle)
  • 고조파 전력함유율 표시(THD)
  • 온도 (NTC) 또는 4~20mA AI 단자 1 point 지원
  • RS485 Serial 통신 및 이더넷 통신 기본 지원
  • 외부 DI/DO/AI 모듈 확장성
  • RJ12 CT 컨넥터에 의한 보다 쉬워진 작업성
gems3900 Smart Multi-Channel Meter
  • gems3900 is able to measure and monitor multi electric feeders by one unit.
  • Metering : phase voltage , line voltage, line current, Frequency, Power Factor, Active / Reactive / Apparent Power, Active / Reactive / Apparent Energy, etc.
  • Up to 99 single-phase, 49 3P3W or 33 3P4W feeders power monitoring
  • Flexible application for single phase / 3phase 4 wire / 3 phase 3 wire power line
  • 0.5 / 1.0 Class accuracy according to IEC62053-21 / 22
  • Applied to 3-phase 4-wire / 3-phase 3-wire with one model
  • Reduced total costs by replacing up to 99 stand-alone power meters
  • Sag / Swell function (minimum 0.5 cycle)
  • Total Harmonics Distortion (THD)
  • 1 analog input terminal for a temperature measurement (NTC) or 4~20mA signal input
  • Support RS485 Serial communication and Ethernet communication

gems7000


Product Information
gems7000 제품정보
  • 실시간 전력 품질 분석 및 정밀계측을 통한 정확한 분석/진단
  • Over/Under Limit 알람
  • 측정 요소 : 상/선간 전압, 주파수, 전류, 유효/무효/피상 전력, 전압/전류 불평형률, 역률, 위상, 유효/무효/피상 전력량 등
  • 31차 고조파 측정, 고조파 함유율

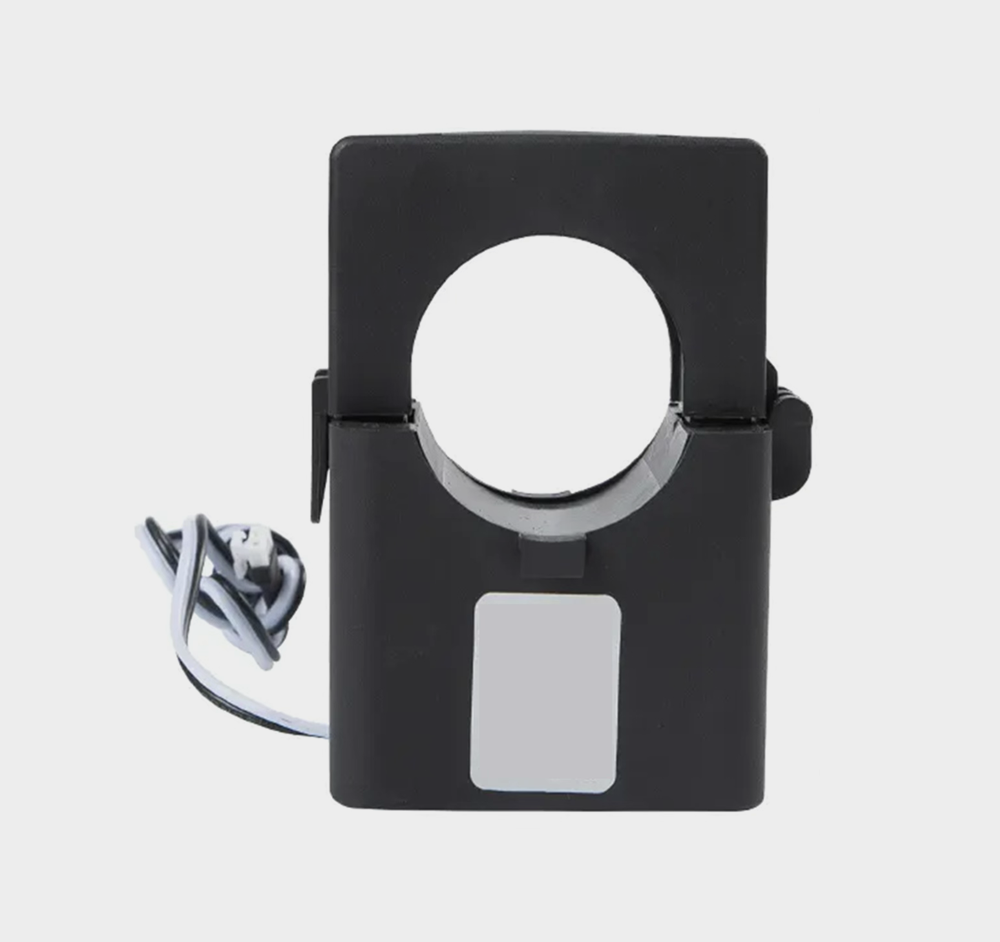

  • 다양한 종류별 CT 지원 – 10mA / 333mV / 100mA / 5A / 로고스키 코일 등
  • 확장모듈을 이용한 선택적 기능 확장이 가능
  • 외부 DI/DO/Ethernet 확장모듈
  • 고선명 4.3” TFT LCD를 이용한 명확한 정보 전달
  • 커다란 전면부 터치키를 이용한 직관적이고도 쉬운 조작
  • Waveform Display 기능
  • 온도센서 1 채널 지원
  • RS485 serial 통신 및 Ethernet 통신 지원 (옵션 모듈)
  • gems3500 및 DIO 확장 장치 같은 하위장치와의 연결 지원
  • 국제 표준의 월마운트 방식 설치를 지원하며 전용클립을 통한 설치가 용이

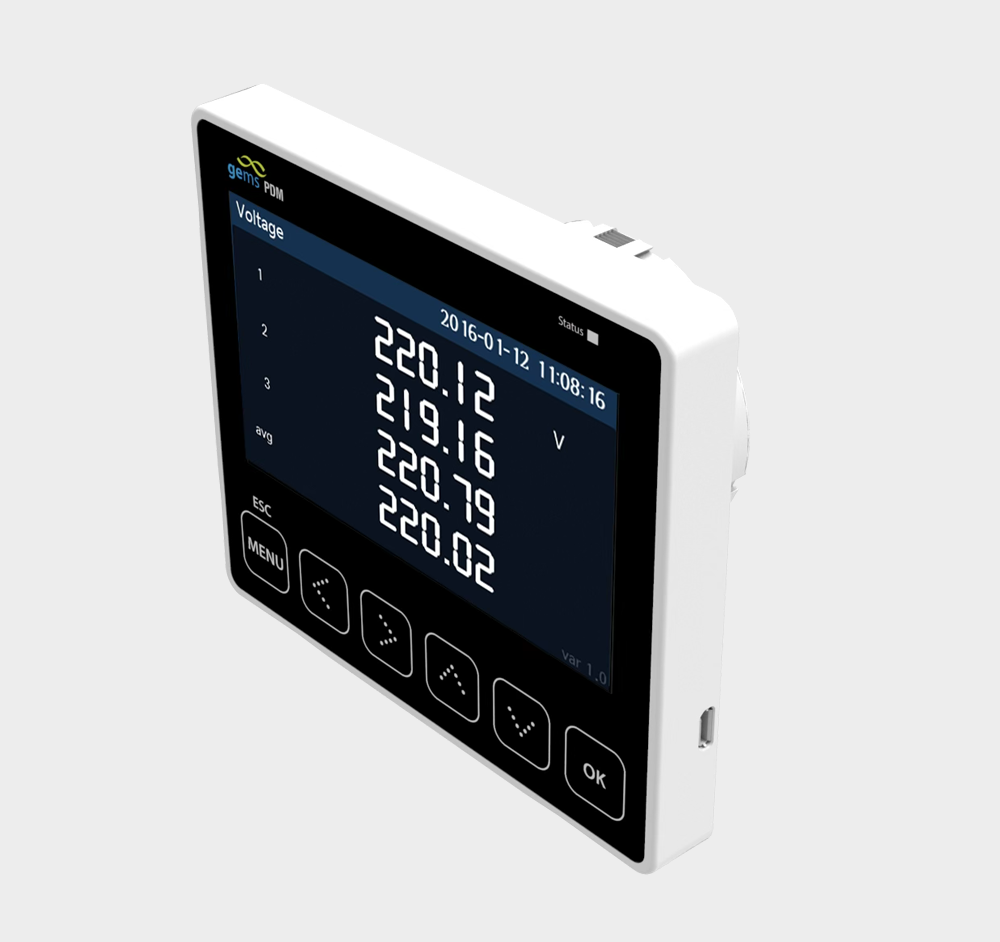

gems7000 Smart Power Quality Meter
  • True real-time power quality analysis and precise measurement
  • Alarm – Over, Under, Limit
  • Metering parameters : phase voltage , line voltage, current, Frequency, Power Factor, Active / Reactive / Apparent Power, Voltage / Current unbalance, Active / Reactive / Apparent Energy, etc.
  • 31st harmonic, THD
  • Support various CT types - 10mA / 333mV / 100mA / 5A / Rogowski coil etc.
  • Modular design – easy to add function.
  • Additional option modules - DI/DO / Ethernet / Temperature
  • Clear display with 4.3 "TFT LCD
  • Easy operation with large touch keys
  • Waveform Display
  • 1 NTC port for temperature measurement
  • Support RS485 serial communication and Ethernet communication

gems7300


Product Information
gems7300 제품정보
  • 실시간 전력 품질 분석 및 정밀 계측을 통한 정확한 분석/진단
  • Over/Under Limit 알람
  • 측정 요소 : 상/선간 전압, 주파수, 전류, 유효/무효/피상 전력, 전압/전류 불평형률, 역률, 위상, 유효/무효/피상 전력량 등
  • 63차 고조파 측정, 고조파 함유율
  • 다양한 종류별 CT 지원 – 333mV / 100mA / 5A / 로고스키 코일 등
  • 확장모듈을 이용한 선택적 기능 확장이 가능
  • 외부 DI/DO/Ethernet 확장모듈
  • 고선명 5” TFT LCD를 이용한 명확한 정보 전달
  • 커다란 버튼과 터치스크린을 이용한 직관적이고도 쉬운 조작
  • Waveform capture and display
  • 온도센서1채널지원
  • RS485 serial 통신 및 Ethernet 통신 지원 (옵션 모듈)
  • gems3500 및 DIO 확장 장치 같은 하위장치와의 연결 지원
  • 국제 표준의 월마운트 방식 설치를 지원하며 전용 클립을 통한 설치가 용이
gems7300 Smart Power Quality Meter
  • True real-time power quality analysis and precise measurement
  • Alarm – Over, Under, Limit
  • Metering parameters : phase voltage , line voltage, current, Frequency, Power Factor, Active / Reactive / Apparent Power, Voltage / Current unbalance, Active / Reactive / Apparent Energy, etc.
  • 63st harmonic, THD
  • Support various CT types - 10mA / 333mV / 100mA / 5A / Rogowski coil etc.
  • Modular design – easy to add function.
  • Additional option modules - DI/DO / Ethernet / Temperature
  • Clear display with 5 "TFT LCD
  • Easy operation with large touch keys
  • Waveform capture and display
  • 1 NTC port for temperature measurement
  • Support RS485 serial communication and Ethernet communication

gems5500


Product Information
gems5500 제품정보
  • 모터의 온라인 진단 + 에너지관리 기능을 통합한 최상위 진단 시스템
  • 사용자 친화적인 인터페이스를 통해 비전문가도 쉽게 모터 상세 진단이 가능
  • 모터의 전기적/기계적 결함에 대한 진단 (3상 AC 모터 및 인버터 모터)
  • 전용의 분석 S/W를 이용한 상세한 진단 리포트 제공
  • 에너지 미터 기능 내장 (측정요소 : 전압, 주파수, 전류, 전력, 불평형율, 역률 등)
  • 누설 전류 1 채널 측정 지원
  • 판넬 표시 장치 지원 (4.3” TFT LCD 모니터)
  • Ethernet 통신 지원
  • EN 60255-26:2013, EN61010-1:2010, EN61326-1:2006 규격 인증 진행
  • 좁은 MCC 공간에 설치가 가능한 콤팩트한 사이즈 (94 x 63 x 100 mm)
  • 딘레일과 월마운트를 이용한 고정방식 지원
gems5500 Motor Diagnosis & Protection System
  • Top-level fault diagnostic system : online condition monitoring and energy measuring
  • Predictive Diagnosis of Electrical and Mechanical Faults (3-phase AC motor)
  • Provides detailed diagnostic report using analysis software (gemsDMS software)
  • Energy meter function (Measuring parameters : V (L-N, L-L), A, Hz, PF, THD, Unbalance, Power(P,Q,S), Energy (P,Q,S),etc.)
  • Measure leakage current of 1 channel
  • Support Panel display monitor (4.3 "TFT LCD monitor)
  • RS485 serial communication and Ethernet communication support
  • EN 60255-26: 2013, EN61010-1: 2010, EN61326-1: 2006
  • Compact size (94 x 63 x 100 mm) for installation in narrow space
  • Both DIN rail and wall mount available

iBSM30


Product Information
iBSM30 제품정보
  • 측정요소 : 상/선간전압, 주파수, 선전류, 유효/무효/피상전력, 전압/전류 불평형률, 역률, 유효/무효/피상전력량
  • 2개의 3상차단기 혹은 6개의 단상 차단기 on/off 및 Trip 감시 가능
  • 누설전류 측정 지원
  • 통신 : RS-485, Controller Arean Network 지원
  • IEC62053-22에 따르는 0.5 Class 전력 정밀도
  • Sag/Swell 기능 (최소 0.5 cycle), Trip 측정
  • 고조파 전력함유율 표시(THD)
  • 온도 센서 내장 : 주변온도 (Ambient Temperature) 측정 가능
  • 월마운트 및 딘레일방식 설치 지원
iBSM30 Busway Tap Box Power Meter
  • Measurement elements: phase/line voltage, frequency, line current, active/reactive/apparent power, voltage/current unbalance factor, power factor, active/reactive/apparent energy
  • Monitoring on/off and trip status for two 3-phase circuit breakers or six single phase ciircuit breaker
  • Measuring Leakage current
  • 0.5 Class precision conforming to IEC62053-22
  • Sag/Swell function (minimum 0.5 cycle), trip measurement
  • Display power harmonic distortion (THD)
  • Built-in temperature sensor: Ambient temperature can be measured
  • Support for wall mount and DIN rail installation

iBGW100


Product Information
iBGW100 제품정보
  • 연결된 디바이스들에 대한 탐색 및 정렬 기능
  • 최대 66대의 iBSM 장치들을 하나의 시스템으로 연결
  • 슬레이브와의 통신 : 통신과 동작전원을 하나의 케이블로 제공, Ringbus Communication, 최대 1Mbps
  • iBGW 이중화 지원 : Active – Standby 방식, VIP(Virtual IP) 방식
  • 호스트와의 통신 : Modbus TCP 기반의 이더넷 통신(랜이중화 2포트, 4개의 IP사용(iBGW 이중화))
  • 전원이중화 지원
  • 고선명 5” TFT LCD를 이용한 명확한 정보 전달
  • 판넬 마운트 및 딘레일방식 설치 지원
iBGW100 Communication gateways
  • Search and sort function for connected devices
  • Connect up to 64 iBSM devices into one system
  • Communication with iBSM: Provides communication and operation power with one cable, Ringbus communication, max. 1Mbps
  • Communication with host: Ethernet communication based on Modbus TCP (2 ports of LAN redundancy)
  • Power redundancy support
  • High-definition 5” TFT LCD
  • Support for panel mount and DIN rail installation
